SY650HD Excavator Pile Driving Arm (Vibro Hammer Arm) Custom-Built Pile Driving Boom for SANY SY650HD / Heavy-Duty Foundation Work

EXCAVATOR PILE DRIVING  ARM & BOOM

 ▎PRODUCT DESCRIPTION

SY650HD

The SY650HD Pile Driving Arm is a heavy-duty excavator boom specially engineered for foundation construction, steel sheet pile installation, photovoltaic pile driving, bridge piling, and urban foundation reinforcement projects.
Designed for the SANY SY650HD, this piling arm provides exceptional structural strength, enhanced vibration resistance, and maximum operational stability—making it ideal for high-capacity vibro hammers and hydraulic pile drivers.

Our pile driving arm adopts high-strength steel, fully welded reinforcement plates, and optimized boom geometry to deliver superior load-bearing capability. It is designed to withstand continuous vibration working conditions, ensuring durability under the toughest soil and construction environments.

We provide full customization based on working conditions, including:

• Vibro hammer model compatibility

• Reinforced boom structure

• Custom-built brackets, hoses, and quick couplers

• Full set of hydraulic lines and protective sleeves

• On-site installation support (optional)

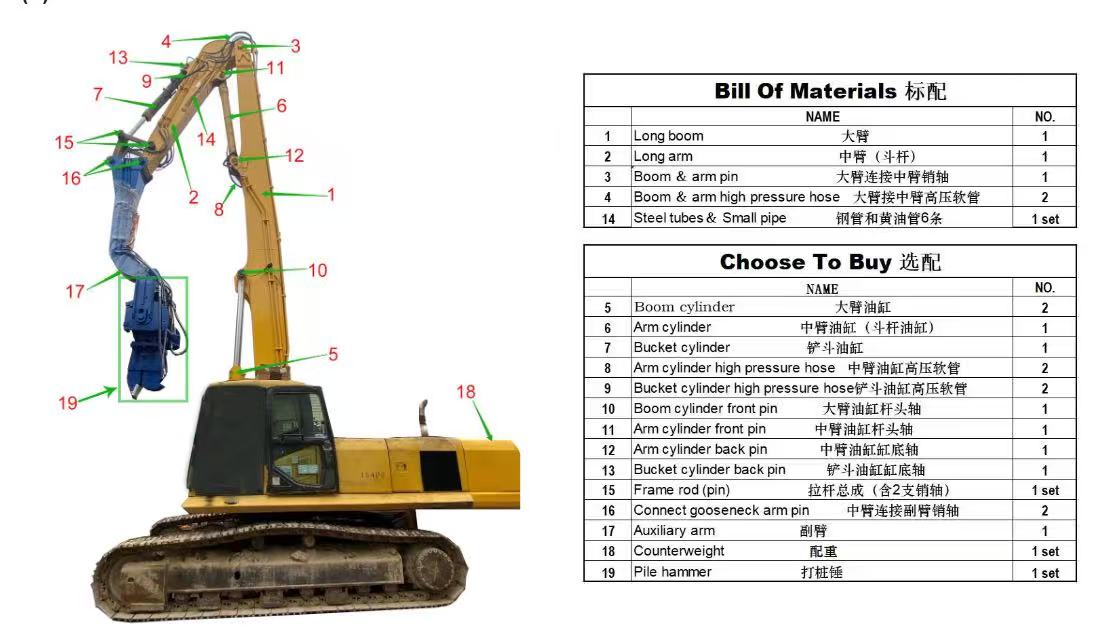

 ▎CONFIGURATION SITUATION

 ▎STEEL CUTTING

The incision is flat to ensure the accuracy of cutting steel plates

 ▎GROOVE WELDING

Before welding, we have use big edge milling machine mill(taper process) the edge of the sheet. So the welding can go to the internal of the steel-sheet and make the structure have higher performance.

Orbital welding machines are used for welding, and manual strengthening and welding are performed at corners and reinforcements.

Our boom and arm are large-welded box structure and thick or multi-plates for high-stress areas.

Also the inside have strength plate make it more stronger.

 ▎LARGE BORING MACHINE -- BUTT BORING

The processing efficiency is higher, the precision is better, and the product quality and labor efficiency are greatly improved.

 ▎SURFACE TREATMENT OF WORKPIECE--SHOT BLAST

The small steel balls of the large shot blasting machine are used to hit the surface of the workpiece to remove the rust and small impurities on the surface of the steel plate, so that the surface of the workpiece presents the original metallic luster and increases the adhesion of the primer.

 ▎PRIMER AND PAINT TREATMENTS

Spray with the same paint as the brand excavator factory to ensure consistent color.

 ▎HIGH PRESSURE HARD PIPE & PIPELINE BENDING TREATMENT

1. Friction welded flange and oil cylinder - use machine high-speed friction welding, which has higher efficiency and avoids artificial false welding and air bubbles.

2. Automatic pipe bending machine - use numerical control to control the degree of bending of the pipeline, and automatically bend the seamless steel pipe, with higher precision.

 ▎PAINT / PACKAGING / TRANSPORTATION SERVICES

1.The color paint is consistent with the brand excavator factory (customizable color), using high-quality paint to make the product more delicate and beautiful.

2. We use stretch film to package the product. (Three-plywood wooden frame needs to be noted)

3. We have cooperated with many shipping companies in China for many years,and the transportation service and efficiency are very good. (Recommend FOB/CIF/CNF)

 ▎CERTIFICATTES & FACTORY HISTORY

We were originally affiliated to a Singaporean private factory in China. We have always only served the excavator industry and have a lot of data and manufacturing experience. Provide professional excavator accessories for dealers in many countries around the world.We insist on quality first, and deal with details so that brand dealers appoint us as partners.

（Information and photos are not displayed to protect the privacy of customers）
